Aurora Multimedia Corp. Aurora Newsletter
June 25th 2015
IN THIS ISSUE: InfoComm 2015 Recap

Thanks to all that visited the Aurora booth last week at InfoComm 2015. It was great meeting with all our dealer partners, consultants and end users who stopped by. 2015 was another record breaking / award winning show for the company: the V-Tune Pro 4K took 1st place for Video Distribution Systems in the 2015 CI Best Awards at InfoComm 2015, and IPBaseT IPX-TCW3 4K Transceiver Wall Plate was awarded the Best Of Show at InfoComm 2015 award.

Below is a review of the new products we showcased in the booth. For further information or to schedule a personal demo, please contact us directly or our international distribution partners for those who visited from outside the US.


NEW IPX Series – 4K Video over IP with IPBaseT

Leveraging Aurora’s IPBaseT™ Technology, the award-winning IPX series transceivers are the market’s first 4K transceiver with zero compression and zero latency. Combining the ability to use the unit as a transmitter or receiver, the solution greatly simplifies overall system design, ordering, stocking, and deployment.

Don’t be fooled by the appearance – the IPX series transceivers are not point-to-point extenders. Combine as many units as you need on a 10G network to create a nearly limitless “distributed matrix” system. Place transceivers at your sources and at your displays and they link up automatically to provide you with uncompressed 4K video distribution. Aside from the simplicity of the system design, installation, and troubleshooting, all IPX units come complete with a video wall processor and a control processor built in – at no additional cost.

IPX-TCW3 (10G fiber or copper)


IPX-TC1F (10G fiber)


IPX-TC1C (10G copper)

  • IPBaseT tranceiver – one unit can be configured as a transmitter (encoder) or receiver (decoder)
  • 4K with zero compression and zero latency
  • Available for 10G fiber or 10G copper networks
  • Two HDMI inputs, one HDMI output
  • 128×128 w/HDCP distributed routing (nearly unlimited scalability without HDCP)
  • Seamless video and breakaway audio switching
  • Video wall capabilities
  • Built in control system with web server for display and source control
  • Dante® IP audio and ExtremeUSB® (USB 2.0 480Mbps) options
  • Available in surface/rack-mountable (IPX-TC1) or wall plate (IPX-TCW3) versions
  • IPX-TCW3 available in white or black

More Information Click for Price Quote

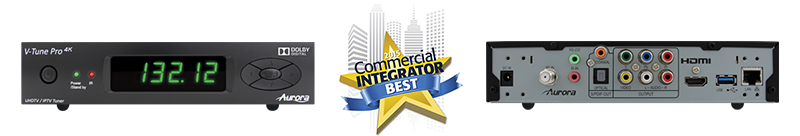

V-Tune Pro 4K Tuner

The Aurora V-Tune Pro 4K tuner is the industrys first 4K2K RF Tuner / IPTV all-in-one solution. Designed for any integrated system requiring IPTV, ATSC, QAM, NTSC & PAL, the tuner is capable of decoding MPEG2, MPEG4, VC-1, H.264, and H.265 with resolutions up to 4096×2160 at 60Hz via both RF and LAN. In addition, the innovative device is equipped with an onboard 4K scaler for viewing 1080P HD content on 4K displays. To facilitate the installation process, V-Tune Pro 4K allows cloning of channel configuration over USB or LAN and accepts IR, RS-232, and IP-based control in addition to the ability to program any channel for O
TA/Broadcast or streaming content from local area networks. Users simply switch between content by changing channels – providing cost-effective solution for any rich media application.

  • Only 4K professional tuner on the market (up to 4096×2016 @60Hz) w/4K up-scaling for non 4K content
  • Only professional QAM/ATSC tuner with built-in IPTV Streaming decoder (H.264/H.265)
  • Only professional tuner with RS232 display control over IP
  • USB/IP cloning for ease of setup of multiple units



  • Rack mounts included for ease of install
  • Decodes up to 4K digital content (web cam/digital signage/educational material etc.) streaming on network direct to individual channels same as QAM modulated content.
  • IR remote and built-in web interface for easy control from anywhere!

More Information Click for Price Quote

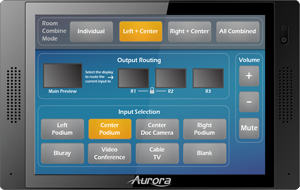

QXT-500 and QXT-700 Platform-Agnostic Touch Panels

Auroras innovative QXT quad-core HD touch panels are a platform-agnostic tablet-ready solution embedded with an integrated control processor. Featuring a high resolution screen and 2D/3D graphic accelerator, these units ensure both stunning graphics and a responsive GUI experience for a wide variety of environments.


QXT-500


QXT-700


Equipped with a quad-core processor, PoE-enabled 1 Gbps LAN port, multiple on-board RS232/IR/Relays, as well as DIO, the QXT touch controllers are specifically designed to bring more efficient control to any conference room, classroom or hospitality AV application. A built-in web server and HTML based control interfaces support iPad, Android, and other tablets, as well as virtually any device with a web browser.

  • Quad Core Control Processor (1GHz/Core)
  • Fully Autonomous: 10/100/1G LAN With PoE, 2-RS232, 2-IR/Serial, 2-I/O with A/D, 2-Relays
  • Display with Stunning Clarity
  • Surface Mounts into 2-Gang Box
  • Web Server for automatic Tablet integration (No Apps or License fee required)

More Information Click for Price Quote


DXM Third Generation 4K Matrix Switchers



New at InfoComm 2015, DXM third generation Matrix switchers, the DXM-88-G3 8×8 matrix, DXM-1616-G3 16×16, and the DXM-3232-G3 32×32 card-cage matrix systems. Updated to 4K UHD these completely new systems add some major features to the system such as embedding Auroras QXT touch panel control engine as the main interface for the matrix.The front panel will now house the new QXT-700 touch panel offering not only control for the Matrix but full control for the entire system adding IP, RS232, IR, Relays and DIO ports directly to the Matrix. Additional updates include an embedded 1G network switch allowing Ethernet to pass directly over the HDBaseT inputs and outputs for streamlining wiring infrastructure throughout a facility.The DXM-G3 system will also provide PoH (Power over HDBaseT) for all Aurora HDBaseT peripherals (HDBaseT Wall plates and Receivers). The system also adds Audio Breakaway switching giving complete flexibility for multi-zone audio enhancement.

  • Available in 8×8, 16×16 and 32×32 Configurations
  • Supports up to 4K UHD Resolutions
  • Hot-Swappable I/O Cards for Easy Service – Available in HDMI®, HDBaseT, Fiber and HD-SDI
  • Break-away Audio
  • RS232 Over HDBaseT Receivers – No PoE Injector Required
  • Integrated QXT-700 Touch Panel Control

More Information Click for Price Quote


DXP-62 Presentation Switcher/Scaler

The new DXP-62 high-end low-cost scaler accepts up to four (4) HDMI inputs and two (2) VGA/YPbPr/Composite inputs and scales up to 1920×1200 HD resolution @60Hz via the units HDMI and HDBaseT simultaneous outputs. Leveraging One Room – One Cable™ features, the HDBaseT output will pass PoH power to the awaiting HDBaseT Receiver as well as RS232 and IR control for the display. The unit will be available in packages with any of Auroras award-winning DXE-CAT receivers allowing the customer to configure with onboa
rd amplification, relay control and background/paging integration for a complete single cable solution. With the addition of four (4) external audio inputs, additional MIC input with independent volume control, de-embedding line level stereo output and auto sensing/switching video inputs, the DXP-62 is perfect for Classrooms, Conference Rooms and AV Cart applications.




  • 4 HDMI® Inputs, 2 VGA/YPbPr/Composite Inputs, 4 Analog Audio Stereo Inputs, 1 Microphone Input, 1 HDMI® Output
  • 1 HDBaseT Output 230ft (70m) CAT 5e/6
  • Power over HDBaseT (PoH), R, and RS-232 over HDBaseT
  • Scales input up to 1080p, Auto Switching Feature
  • Front Panel Button Control, Front Panel LCD Display OSD
  • RS-232 and IR Control (LAN/WEB control when ordered as DXP-62K-3), USB for Firmware Updating

More Information Click for Price Quote
