Aurora Multimedia Corp. Aurora Newsletter
June 16th 2015
IN THIS ISSUE: Come see us at InfoComm 2015 – IPX Transceivers, V-Tune Pro 4K, and QXT Touch Controllers
NEW IPX 4K Video over IP Series with IPBaseT

At InfoComm 2015, Aurora will be showcasing the revolutionary IPX-TC1 Audio and Video over IP Transceiver. Leveraging Auroras IPBaseT™ Technology, the award-winning device is the markets first 4k2k transceiver with zero compression and zero latency. Combining the ability to use the unit as a transmitter or receiver, the solution greatly simplifies overall system design, ordering, stocking, and deployment.


IPX-TC1F (10G fiber)


IPX-TC1C (10G copper)


IPX-TCW3 (10G fiber or copper)

Equipped with an option slot to add IP capabilities such as USB 2.0 over IP or Dante audio, the complete, distributed system also enables audio, video, data, and control to be securely delivered to one or many units using standard 10G Ethernet Fiber switches. The IPX-TC1 can support up to 128×128 channels with HDCP and provides users with an OSD menu and web-server to deliver incredible ease of use.

  • IPBaseT tranceiver – one unit can be configured as a transmitter (encoder) or receiver (decoder)
  • 4K with zero compression and zero latency
  • Available for 10G fiber or 10G copper networks
  • Two HDMI inputs, one HDMI output
  • 128×128 w/HDCP distributed routing (nearly unlimited scalability without HDCP)
  • Seamless video and breakaway audio switching
  • Video wall capabilities
  • Built in control system with web server for display and source control
  • Dante® IP audio and ExtremeUSB® (USB 2.0 480Mbps) options
  • Available in surface/rack-mountable (IPX-TC1) or wall plate (IPX-TCW3) versions
  • IPX-TCW3 available in white or black

More Information Click for Price Quote

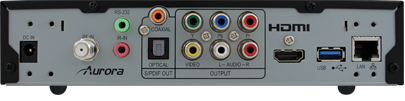

V-Tune Pro 4K Tuner

The Aurora V-Tune Pro 4K tuner is the industrys first 4K2K RF Tuner / IPTV all-in-one solution. Designed for any integrated system requiring IPTV, ATSC, QAM, NTSC & PAL, the tuner is capable of decoding MPEG2, MPEG4, VC-1, H.264, and H.265 with resolutions up to 4096×2160 at 60Hz via both RF and LAN. In addition, the innovative device is equipped with an onboard 4K scaler for viewing 1080P HD content on 4K displays. To facilitate the installation process, V-Tune Pro 4K allows cloning of channel configuration over USB or LAN and accepts IR, RS-232, and IP-based control in addition to the ability to program any channel for OTA/Broadcast or streaming content from local area networks. Users simply switch between content by changing channels – providing cost-effective solution for any rich media application.


V-Tune Pro 4K

  • Only 4K professional tuner on the market (up to 4096×2016 @60Hz) w/4K up-
    scaling for non 4K content
  • Only professional QAM/ATSC tuner with built-in IPTV Streaming decoder (H.264/H.265)
  • Only professional tuner with RS232 display control over IP
  • USB/IP cloning for ease of setup of multiple units
  • Rack mounts included for ease of install
  • Decodes up to 4K digital content (web cam/digital signage/educational material etc.) streaming on network direct to individual channels same as QAM modulated content.
  • IR remote and built-in web interface for easy control from anywhere!

More Information Click for Price Quote


QXT-500 and QXT-700 Platform-Agnostic Touch Panels

Auroras innovative QXT quad-core HD touch panels are a platform-agnostic solution embedded with an integrated control processor. Featuring a high resolution screen and 2D/3D graphic accelerator, these units ensure both stunning graphics and a responsive GUI experience for a wide variety of environments.


QXT-500


QXT-700


Equipped with a quad-core processor, PoE-enabled 1 Gbps LAN port, multiple on-board RS232/IR/Relays, as well as DIO, the QXT touch controllers are specifically designed to bring more efficient control to any conference room, classroom or hospitality AV application. A built-in web server and HTML based control interfaces support iPad, Android, and other tablets, as well as virtually any device with a web browser.

  • Quad Core Control Processor (1GHz/Core)
  • Fully Autonomous: 10/100/1G LAN With PoE, 2-RS232, 2-IR/Serial, 2-I/O with A/D, 2-Relays
  • Display with Stunning Clarity
  • Surface Mounts into 2-Gang Box
  • Web Server for automatic Tablet integration (No Apps or License fee required)

More Information Click for Price Quote
